40 mm F2.8 Heliar aspherical

The HELIAR 40mm F2.8 Aspherical VM / L is a compact quasi-wide-angle lens with a lens configuration of 5 elements in 3 groups based on the Voigtlander traditional Heliar type. The 40mm angle of view, which is between the 50mm standard lens and the 35mm wide-angle lens, is highly versatile as a regular lens. By adopting the latest optical design and aspherical lens, the filter diameter is as small as φ34 mm, and the total length of the product from the mount surface is 21.2 mm (VM bayonet mount) and 20.2 mm, while ensuring optical performance that can be used safely from the maximum aperture. (L * 1 screw mount) is realized.
The retro-style exterior is extremely compact, and it is a lens that combines the mobility of a rangefinder camera as a snap shooter with the joy of owning it due to its beautiful exterior design. The shortest shooting distance is 0.7m, which has a feeding stroke not found in vintage lenses that use this style of rotating helicoid, and the design prevents the helicoid from being exposed on the lens outer cylinder even when shooting at the shortest distance, resulting in an external environment such as dust. It is a strong specification. In addition, the focus lever is equipped with an infinite position lock mechanism like a vintage lens, which is useful when operating the aperture ring or attaching or detaching the lens.
50 mm f1,0

VM-Mount

M-39 Version

There are two types of lens mounts, VM and L. The HELIAR 40mm F2.8 Aspherical VM is a bayonet mount, and the bright frame of a rangefinder camera equipped with a function that automatically identifies the attached lens by mechanical interlocking displays the shooting range of the 50mm lens. The HELIAR 40mm F2.8 Aspherical L uses a φ39mm screw mount, so you can enjoy shooting by attaching it to a rangefinder camera of the same standard in the east and west. In addition, by using a commercially available L / M adapter ring * 2 together, it is possible to display the bright frame of a 35mm lens on a rangefinder camera equipped with an automatic shooting frame switching function. For this reason, it is also effective when you feel that the frame indicating the shooting range is too narrow at 50 mm. The exterior material is brass for both mounts, and two types of finishes are available: black and chrome.
For the black model, the mount is finished in black * 3, and the focus lock button, focus lever and infinite / short-distance stopper are nickel-plated to add an accent to the design. All lenses come with a special screw-in hood with a machined brass material and a black chrome finish.
The optical design of this lens is optimized for use with rangefinder-linked digital and film cameras, but it is also expected to be used with mirrorless digital cameras using a mount adapter, and is linked to rangefinders. It also supports shooting on various platforms beyond the framework of a type camera.
Nokton Classic 35 mm / 1:1.4
Technical specifications

Price: 549,- Euro
Art. Nr:
113 778, silver VM-Version
113 779, black VM-Version
113 780, silver M39 (L)
113 781, black M39 (L)

Specifications VM-Mount:

Brennweite 40 mm
Anschluss Leica M-Bajonett (VM)
Lichtstärke 1:2,8
Kleinste Blende F 22
Optischer Aufbau 5 Linsen in 3 Gruppen
Bildwinkel 57,0°
Blendenlamellen 10
Mindestentfernung 0,7 m
Entfernungsmesserkupplung ∞ ~ 0,7 m (abhängig von Kamera)
Filtergröße Ø 34 mm
Maximaler Durchmesser 52,0 mm
Gesamtlänge 21,2 mm
Gewicht 131 g
Farben Schwarz, Silber
Mitgeliefertes Zubehör Gegenlichtblende, Objektivdeckel, Rückdeckel
EAN 4002451006842 Silber
4002451006859 Schwarz



Technische Daten L-Mount (M39):

Brennweite 40 mm
Anschluss L-Schraubgewinde (M39)
Lichtstärke 1:2,8
Kleinste Blende F 22
Optischer Aufbau 5 Linsen in 3 Gruppen
Bildwinkel 57,0°
Blendenlamellen 10
Mindestentfernung 0,7 m
Entfernungsmesserkupplung ∞ ~ 0,7 m (abhängig von Kamera)
Filtergröße Ø 34 mm
Maximaler Durchmesser 47,0 mm
Gesamtlänge 20,2 mm
Gewicht 110 g
Farben Schwarz, Silber
Mitgeliefertes Zubehör Gegenlichtblende, Objektivdeckel, Rückdeckel
EAN 4002451006866 Silber
4002451006873 Schwarz

Alle Angaben Stand Februar 2022, Änderungen vorbehalten!

Downloads

Usermanual (soon)
Pictures (zip)

Das kann sich sehen lassen!

Diese Fotos von semiprofessionellen Amateuren und Profi-Fotografen wurden mit unserem 40 mm/1:2,8 HELIAR asphärisch aufgenommen:

Für Fotocredits, sowie eine größere Ansicht, bitte das entsprechende Bild anklicken.

40mm-Heliar-VM-Morsbach-Web-4

Sabrina

40mm-Heliar-VM-Morsbach-Web-9

Sabrina
Johannes Morsbach

40mm-Heliar-VM-Morsbach-Web-3

Sabrina

40mm-Heliar-VM-Morsbach-Web-2

Sabrina

40mm-Heliar-VM-Morsbach-Web-1

Sabrina

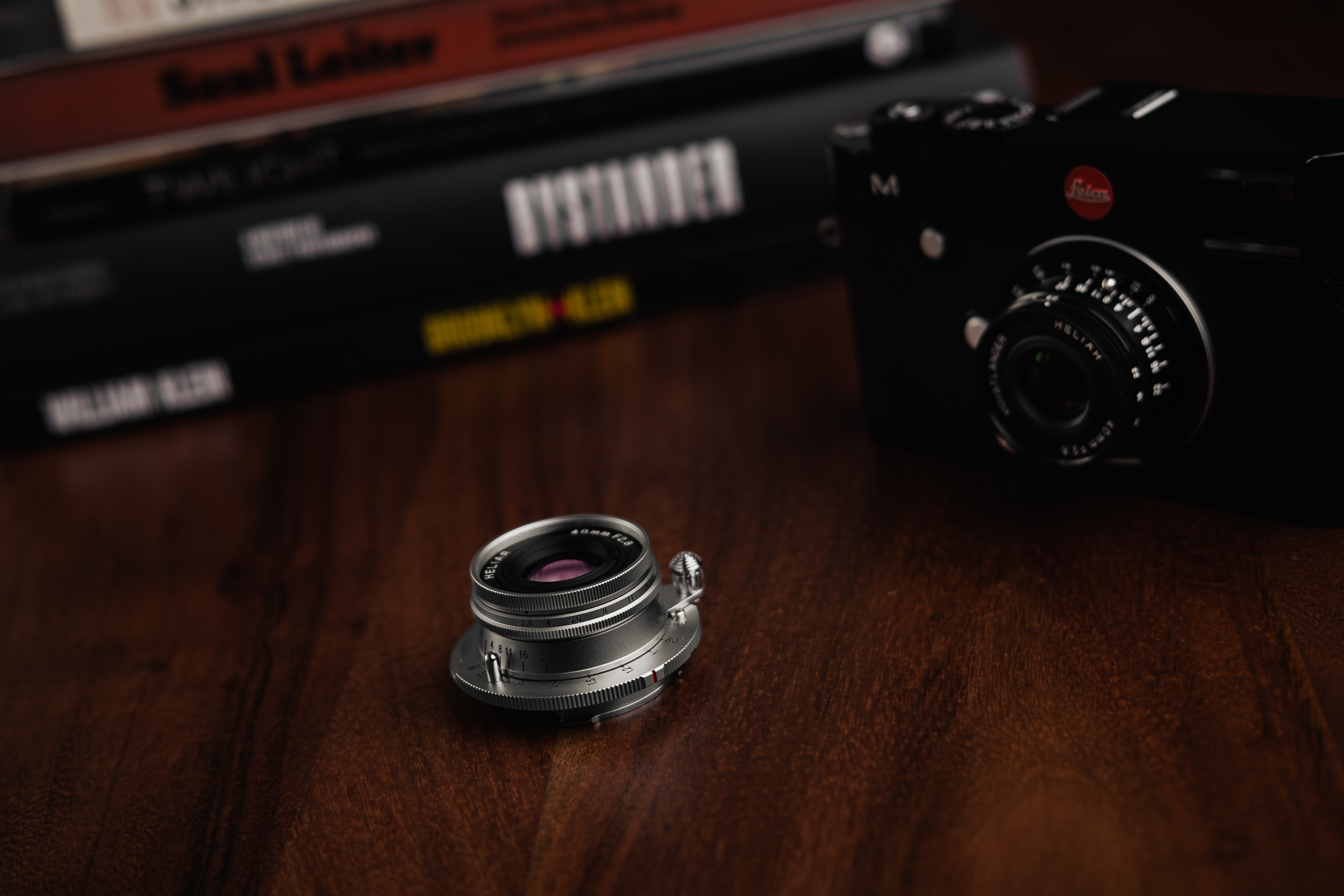

40mm-Heliar-VM-Morsbach-Web-11

Sabrina

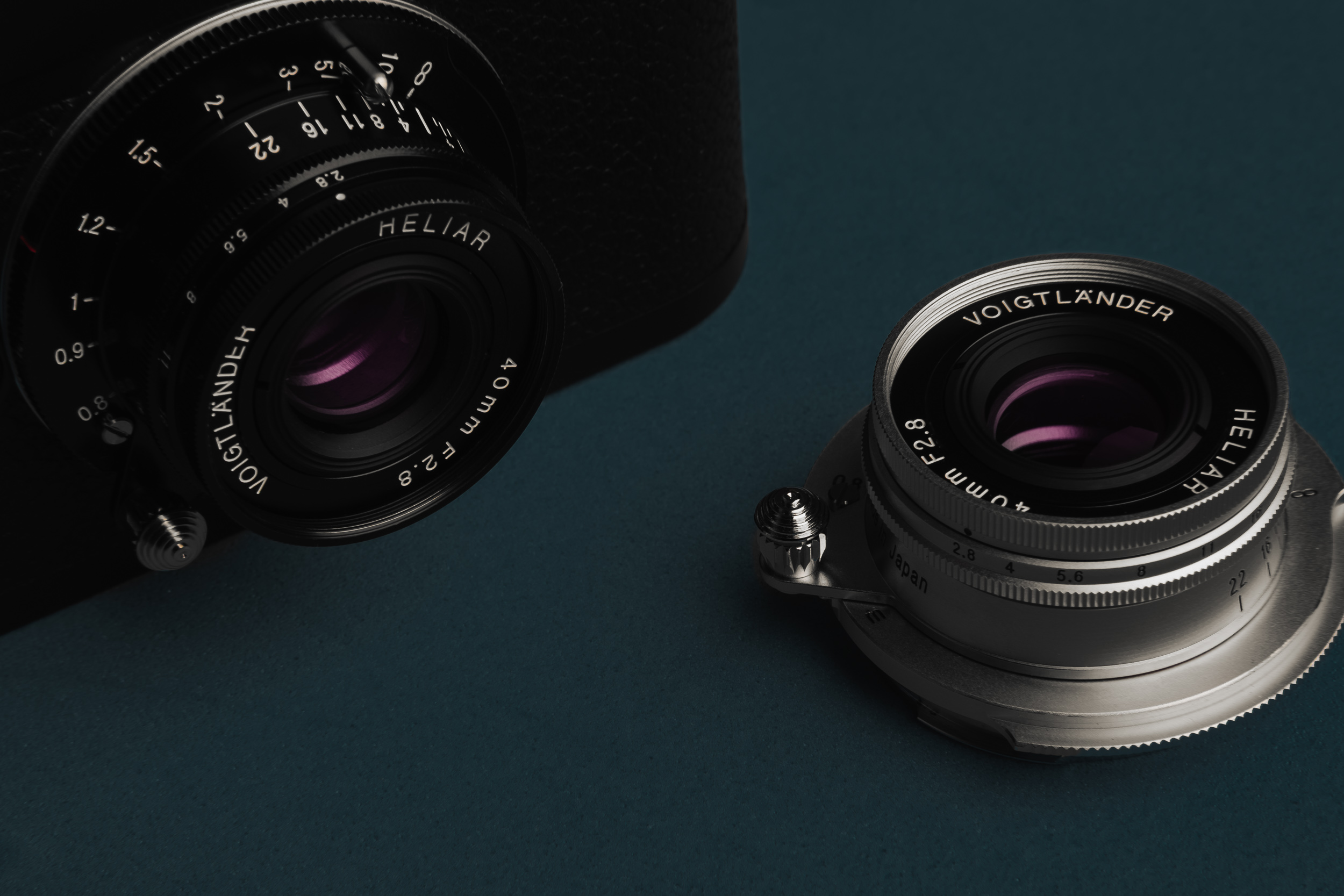

40mm-Heliar-VM-Morsbach-Web-10
