The semi wide-angle standard lens get’s an upgrade

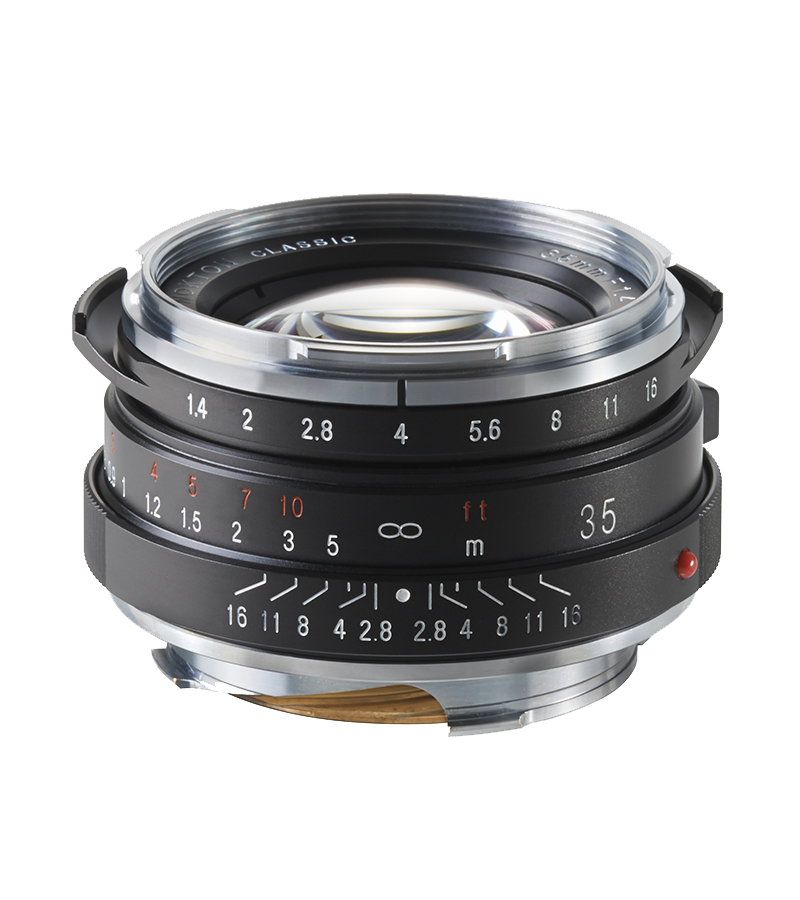

35 mm/1:1,4 Nokton VM II

available as multi coated or single coated
Titel: Bastian Kratzke
With its compact size and large maximum aperture realized by combining a traditional symmetrical lens configuration with the latest optical materials, the NOKTON classic 35mm F1.4 VM is the ideal semi wide-angle lens for rangefinder cameras, and the lens has received wide acclaim over the more than 10 years since its release in 2008.
While retaining the soft and beautiful “bokeh” at full aperture and sharp rendering when stopped down of its predecessor, the NOKTON classic 35mm F1.4 II VM is updated for enhanced user friendliness on digital cameras. The optical formula of this lens received a “tune up” with the aim of improving focus accuracy when using live view to focus. The spherical aberrations that influenced image rendering on its predecessor are retained as is, intentionally so. However with this upgraded version, with respect to the phenomenon caused by spherical aberrations where the focus position shifts when stopping the aperture down to capture an image after focusing with live view at maximum aperture, this shift in the image plane caused by changing the aperture is now almost entirely eliminated.
Furthermore, for focusing at the center of the image using live view and then recomposing to place the subject toward the periphery, stable imaging is realized by improving astigmatism in the intermediate region high range of the image in order to suppress waviness in the image plane at the intermediate region of the image. In addition, the new lens features the same highly accurate focusing cam as its predecessor for reliable focusing from maximum aperture using an optical rangefinder.

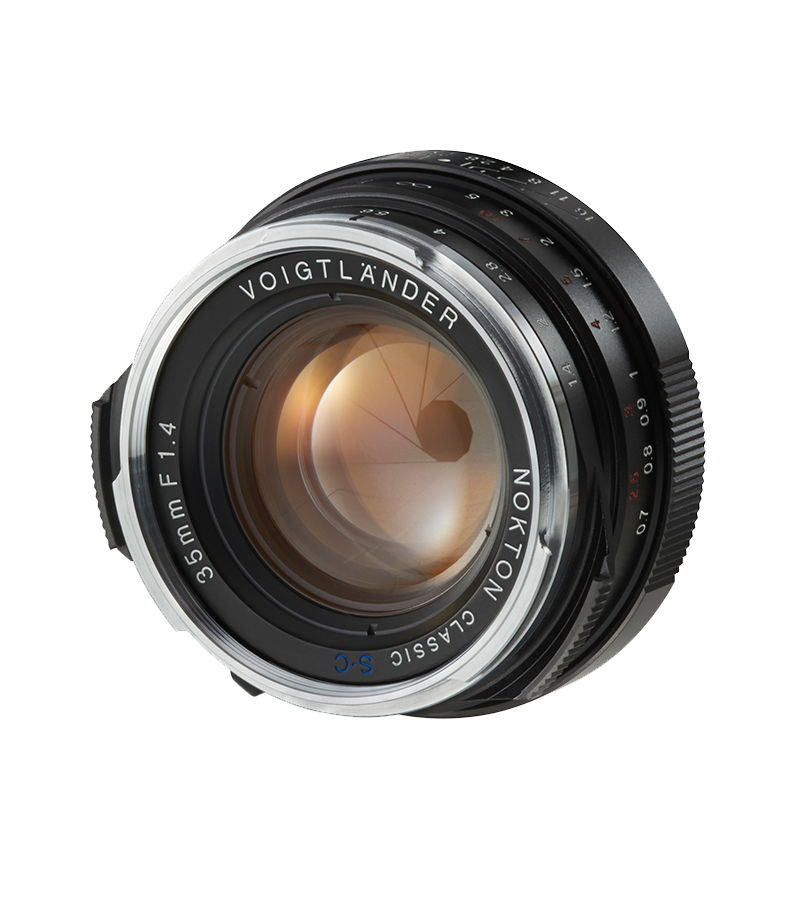

The new lens is offered with two types of coating: multi-coating for neutral color rendering and single coating for classical tones. You can choose the lens coating to suit your taste. Lens Hood (LH-6) optional.
Technical specifications

Preis 649,- EUR

Art-Nr.: 106 141 multi coated
Art-Nr.: 106 142 single coated

Multi coated / Technische Daten

Focal Length 15 mm 35 mm
Aperture Ratio 1:4,5 1:1,4
Minimum Aperture (F) 22 16

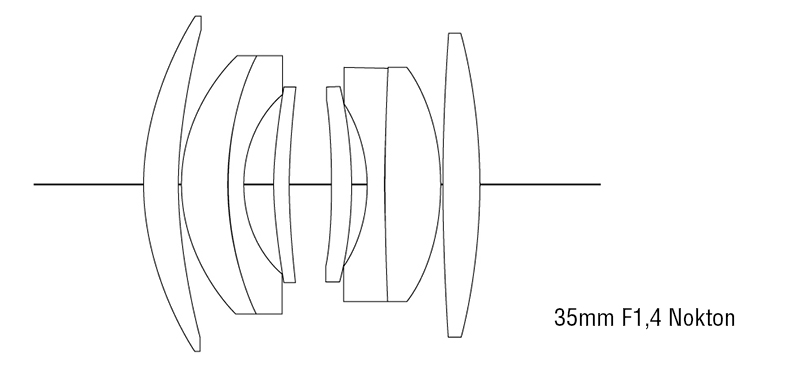

Lens Construction 11 elements in 9 groups 8 elements in 6 groups
Angle of View 110˚ 63°
Aperture Blades 10 10
Minimum Focus 0,5 m 0,7 m
Maximum Diameter 64.8 mm 55 mm
Length 55,2 mm 28,5 mm
Mount M-bayonet (VM) M-bayonet (VM)
Weight 247 g 189 g
Filter Size 58 mm 43 mm
Color black black
Others integrated lens hood (non-detachable), rangefinder can be combined rangefinder can be combined
Optional Lens hood LH-6

Data for Single coated:

Focal Length 15 mm 35 mm
Aperture Ratio 1:4,5 1:1,4
Minimum Aperture (F) 22 16
Lens Construction 11 elements in 9 groups 8 elements in 6 groups
Angle of View 110˚ 63°
Aperture Blades 10 10
Minimum Focus 0,5 m 0,7 m
Maximum Diameter 64.8 mm 55 mm
Length 55,2 mm 28,5 mm
Mount M-bayonet (VM) M-bayonet (VM)
Weight 247 g 189 g
Filter Size 58 mm 43 mm
Color black black
Others integrated lens hood (non-detachable), rangefinder can be combined rangefinder can be combined
Optional Lens hood LH-6
Downloads
Usermanual (pdf)

Druckdaten (in Kürze)

YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Differnece between MC (Multicoated) und SC (Singlecoated)

How does the image result differ? Here you can find the difference in the galleryp>
